KNOPPO
KML-FT 60W JPT Mopa Color Fiber Laser Marking Machine
Applicable Materials :
KML-FT 50W 100W Deep engraving fiber Laser marking machine is suitable for metal marking , for example , Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Ring , Silver , Titanium , Metal Sheet, Metal Plate, Tubes and Pipes, etc.
Applicable Industries :
Machinery parts, electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields.
Technical Parameters
Model | KML-FT |
Laser Wavelength | 1064nm |
Marking Area | 110*110mm/200*200mm/300*300mm |
Laser Power | 20W / 30W / 50W / 70W / 100W |
Laser Type | Fiber Laser |
Laser Source | MAX / RAYCUS / JPT |
Marking Speed | 7000mm/s |
Graphic format supported | PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, etc formats; |
Power supply | Ac 220 v ± 10% , 50 Hz |
Min Line | 0.01mm |
Cooling method | Air cooling |
Machine Size | 80*65*145mm |
| Weight | 90kg |
Configuration

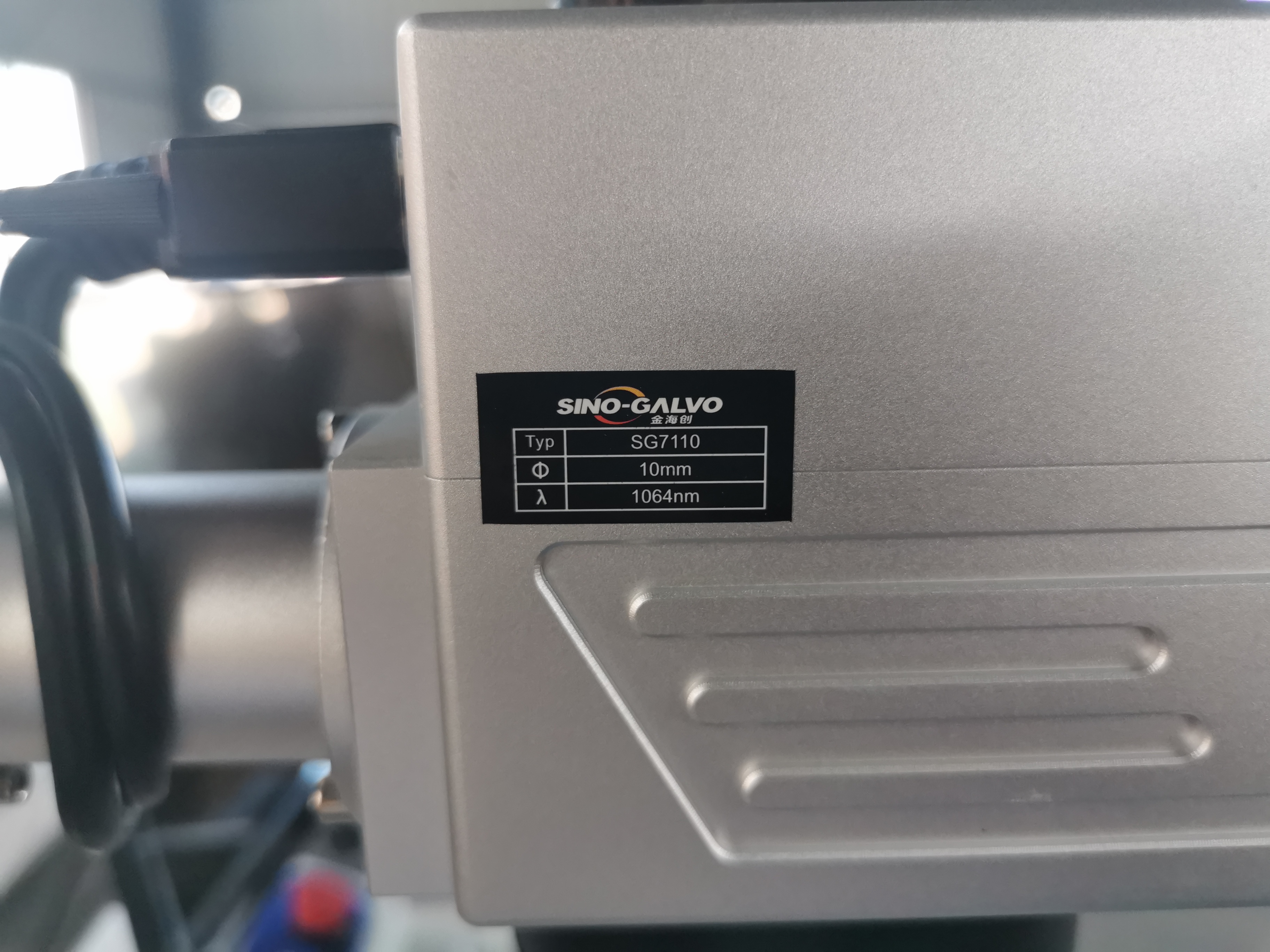

| SINO-GALVO Scanner SINO-Galvo Scanner has compact design, high positioning accuracy, higher marking speed, and strong anti-interference ability. In the process of dynamic marking, the marking line has high precision, distortion free, power uniform; pattern without distortion, the overall performance has reached the international leading level in the field. |

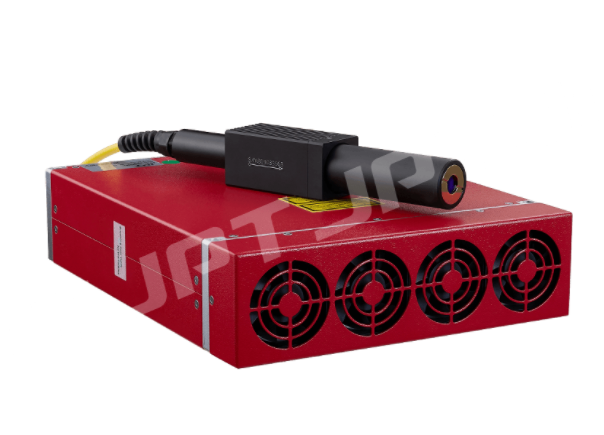

| JPT M7 Mopa Fiber Laser Source JPT M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications. |
|
| EZCAD software EZCAD software is one of the most popular laser and galvo control software especially in the laser marking industry. With the proper controller, it is compatible with most of the industrial laser in the market: Fiber, CO2, UV, Mopa fiber laser... and digital laser galvo . |

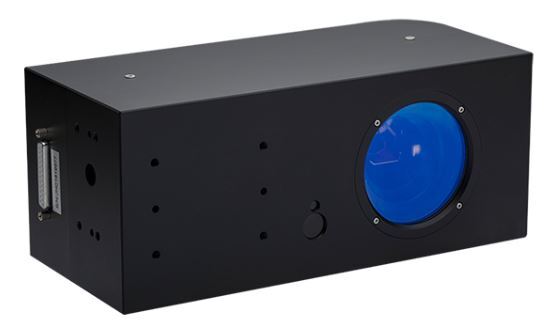

Fiber 3D Dynamic Focus Galvo HeadSINO-GALVO provide the whole 3D Scanning solutions (includes X&Y galvanometers, Z axis motor, control board, software and adapter cable), very user-friendly. The galvanometer motor, drive, control board, optical path design and upper software are all developed by our R&D team. Compact design, done the calibration of box and focal length before shipment and we provide the calibration method. |
|
Contact Us:
E-mail: max@knoppoauto.com
Whatsapp: +86 186 6371 7059
- Technical Paramters:
- Laser Power : 20W 50W 30W 100W,Laser Source: Raycus Max JPT,Marking Area : 110*110mm , 200*200mm 300*300mm,With Rotary Axis,With Computer,Application: Metal Marking
