KNOPPO
KF-T Metal Tube And Sheet Fiber Laser Cutting Machine
1
Application
Applicable Materials Of Fiber Laser Cutting Machine
Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate, metal pipe and tube, etc.
Applicable Industries Of Fiber Laser Cutting Machine
Machinery parts, electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts and other metal cutting fields.

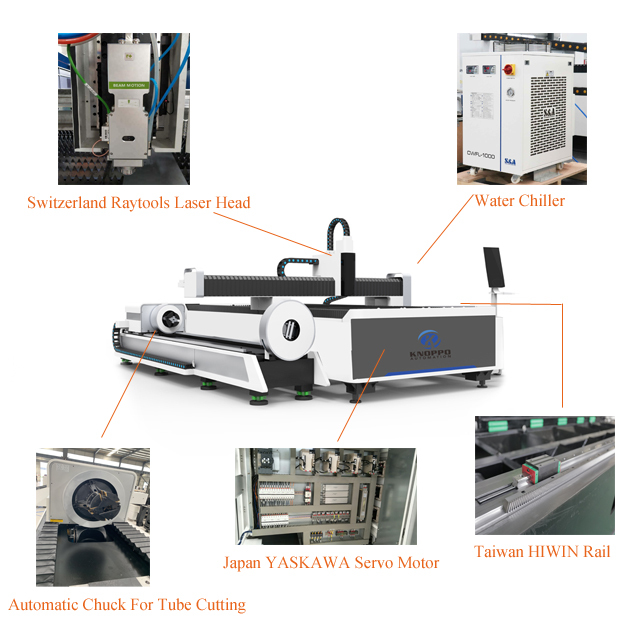

Configuration
* Under table extraction fan.
*Positioning and re-positioning accuracy is 0.02mm.
* laser source in 1KW, 1.5KW , 2KW , 3KW , 4KW – Lifespan 100,000 hours.
* Precision Switzerland Raytools laser head , NO.1 brand on the world.
* Ball screw drive guide rail system from Taiwan.
* Japanese YASKAWA servo motor driver.
* Taiwan Hiwin guide rails.
* German Schneider Electronics Parts.
* CypCut software including nesting capability – stable and efficient productivity.
* Water chiller and extraction system included.
Technical Paramters
Model | KF3015T |
Wavelength | 1070nm |
Cutting Area | 3000*1500mm , 6000*1500mm , 6000*2000mm , 6000*2500mm |
Laser Power | 1000W / 1500W / 2000W / 3000W / 4000W / 6000W |
X/Y-axis Positioning Accuracy | 0.03mm |
X/Y-axis Repositioning Accuracy | 0.02mm |
Max. Acceleration | 1.5G |
Max. linkage speed | 140m/min |
Contact Us:
E-mail: max@knoppoauto.com
Whatsapp: +86 186 6371 7059
- Parameters:
- Laser Source: Raycus IPG MAX,Laser Power : 1000w 1500w 2000w 3000w 4000w 6000w 8000w,Cutting Area : 3000*1500mm,Made In China,Swizterland Raytools Auto Focus Laser Head,Japan YASKAWA Servo Motor And Driver,S&A Water Chiller,Application : Carbon Steel , Stainless Steel , Mild Steel , Gavanized Steel , Aluminium , Brass,Tube Cutting Length: 3m / 6m,Tube Cutting Diameter : 16 ~220mm
